Disconnect the wires at their corresponding components at both ends using a screwdriver. Connect a jumper wire between one wire end and the car frame. Connect the red positive probe of the multimeter to the other end of the same wire; connect the multimeter's black probe to the car frame.

28/11/2014 · Once we have the passenger side light assembly out and the wires disconnected we will go ahead and drop down the 4-flat as well as the yellow …

Never use jumpers to bypass high resistance loads in a circuit. Bypassing resistances, in effect, creates a short circuit. This may, in turn, cause damage and fire. Jumper wires should only be used to bypass lengths of wire or to simulate switches. Jumper wires are simple, yet extremely valuable, pieces of test equipment.

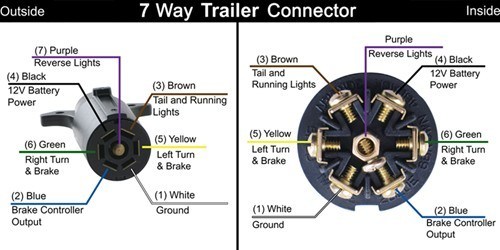

Does one of your turn signals not work and you’re not sure which wire to inspect? Check out or trailer wiring diagrams for a quick reference on trailer wiring. The below information is for reference and is commonly used throughout the industry, but can vary depending on who built the trailer. You can use a circuit tester to verify connections.

Battery Wire & Cable Questions. Some of the most common questions I get asked are things like, “what type of battery wire do you use to build the cables?” and “What size cable should I use for my vehicle? Below are some descriptions of what we use, information on the gauges of wire and when to use it and some other technical charts to use.

This vehicle-to-trailer wiring harness creates a standard trailer wiring connection by plugging into vehicle harness and tail light assembly, and then routing the 4-way harness to the rear end of a vehicle. If you own an older vehicle, chances are it will have neither trailer package factory installed nor T-connectors available for it.

Properly functioning trailer lights are a must for safety, so check your lights every time you use your trailer. Some problems, such as a burned-out bulb or a bad trailer light ground wire, can be a snap to fix—others can be a real pain to diagnose and repair. Follow the steps in our photo sequence to keep your trailer lights in tiptop condition.

How To Fix Your Trailer Lights. We have written this to make it easy for anyone to understand and test trailer lights. Feel free to print this document and wiring diagrams to take them out in the shop or driveway to help you find and fix the problem.

Find a lamp or something you can attach a loooooooooooong jumper wire to CHASSIS NEGATIVE Run that wire out to next-to the 3 wires in question. Check and make sure your meter is set on the lowest resistance measuring scale. The Diode/Continuity scale is …

16/10/2014 · I just used a fused jumper wire to check all the lights and all are correct with the exception of the center pin and (maybe) pin 4. I can trace the center pin wire all the way back to the RV battery so as you mentioned the battery is backfeeding my reverse lights.
